TECHNICAL SPECIFICATIONS
-
Outer Diameter : 6,2 mm(nom)
-
Durability : 1000 Loop
-
Impedance : 100 ohm
-
Contact Resistance : 20m Ohm max.
-
Imbalance Resistance : %2 Max
-
Dielectric Strength : 1000 Volt/1 minute min.
-
Isolation Resistance : 500MOhm min.@500 Vdc
-
Storage Temperature : -40°C……+80°C
-
Operating Temperature : -20°C……+60°C
-
Outer jacket : PVC / LSZH
-
Retention : 50 N ( 11 IBF ) for 60 ± 5 s
-
Mating cycle life : Min. 1000 cycles
-
Tensile strength : ≥ 20 N per wire
-

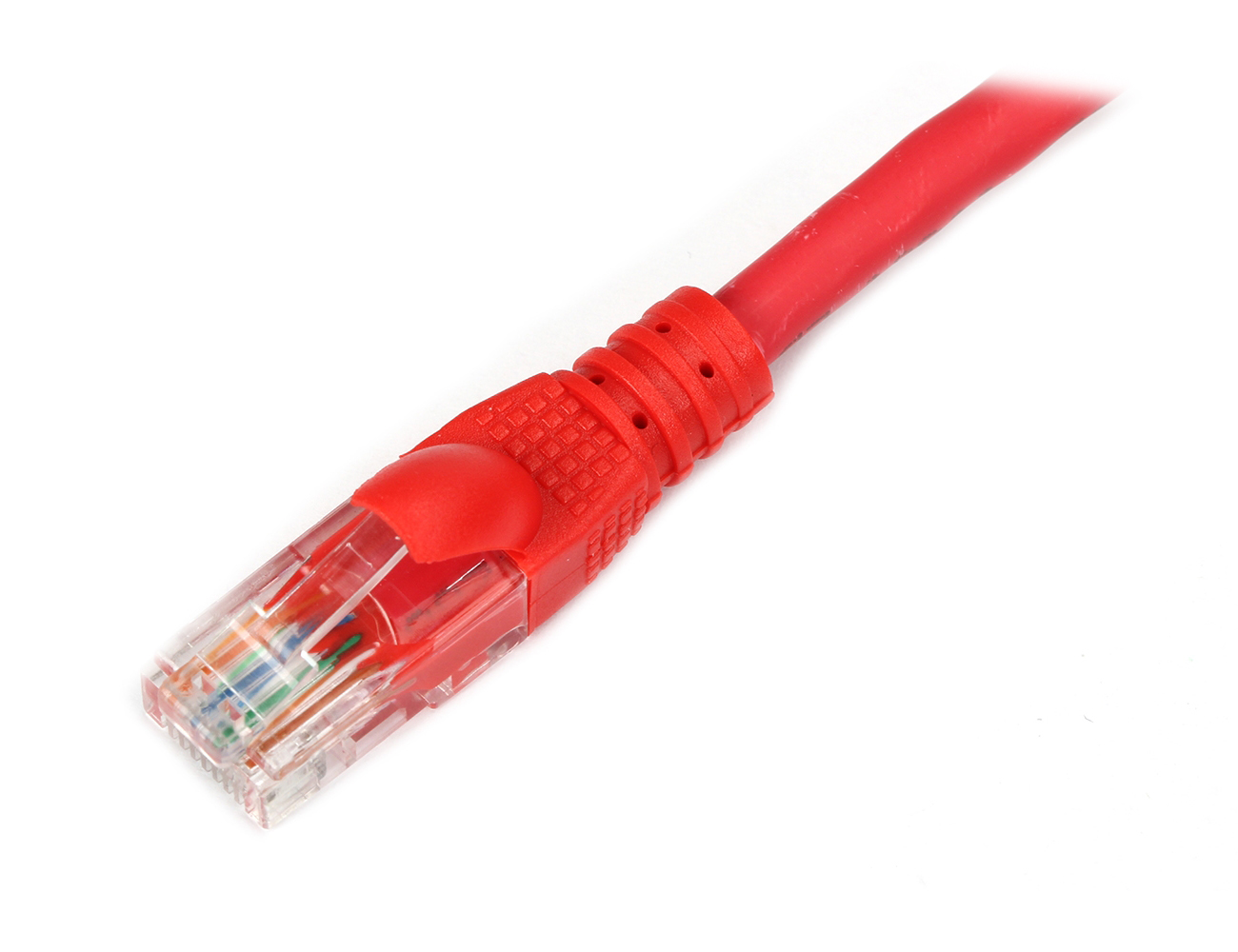

Type : Unshielded RJ45 8P8C modular plug.
-
Housing : UL listed 94V-0 flame retardant polycarbonate
-
IDC blades : Phosphor bronze, gold plating over 100 μ in of nickel in contact area.
