FEATURES

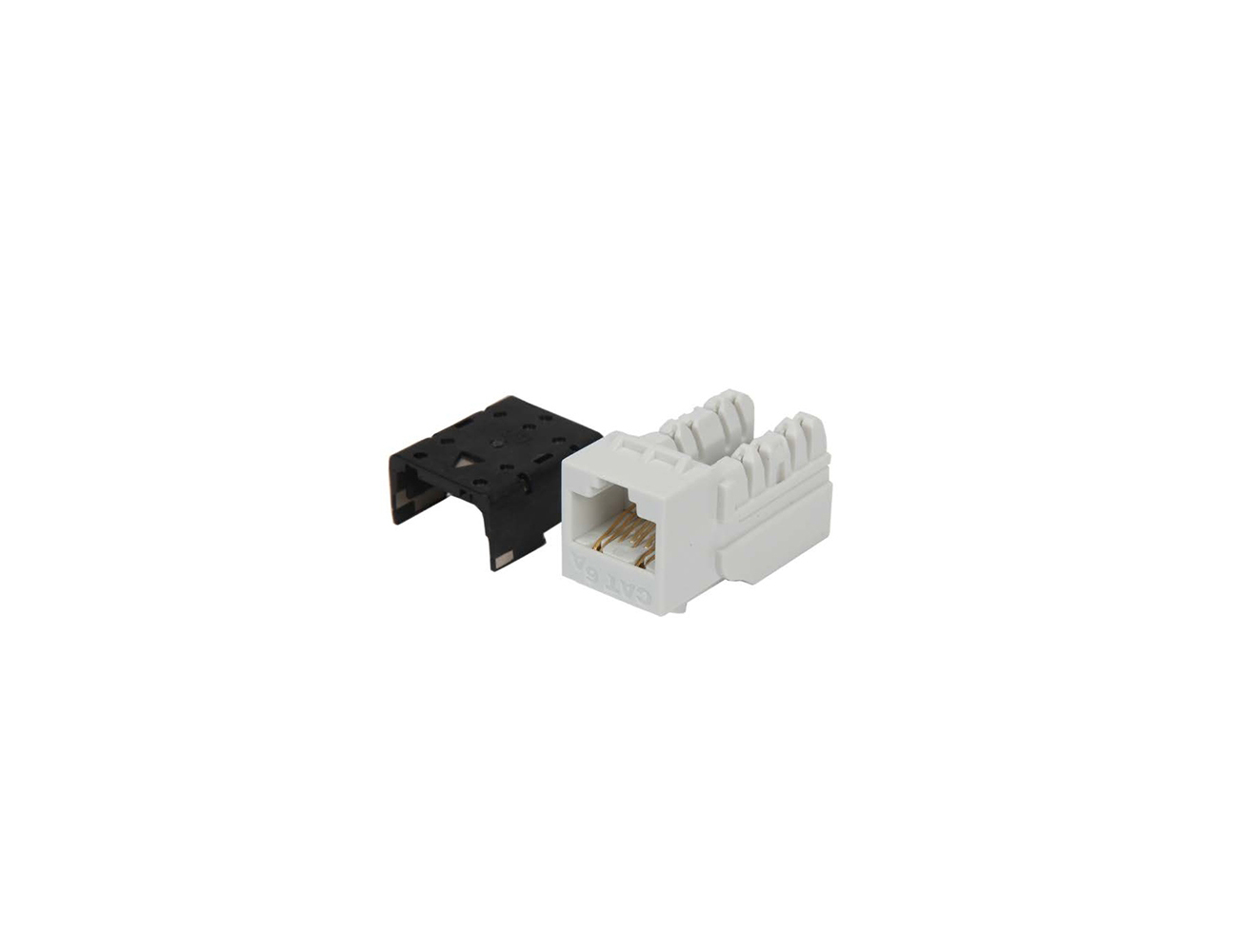

- RJ45 8P 8C 50μ inch Gold Plated Jack
- Fitting 1U 24 Port High Density
- Offers total solution of your local area networking
- Dual IDC connector can accept 23-26 AWG solid and stranded cables
- Support T568 A&B wiring & easy installation
- RoHS compliant
- Performance conforms to ANSI / TIA / EIA-568-C.2, ISO/IE 11801 and
- EN50173-1 Category 6 specification
-
ELECTRICAL SPECIFICATIONS - Dielectric Strength : 1000V RMS for 1min
- Insulation Resistance : 10 MΩ min
- Contact Resistance : 2 mΩ per contact
- Temperature Range : -20⁰C to 60⁰C max
- Humidity : 10%-65%
- Contact Resistance : 20m Ohm max
- Imbalance Input : 200m Ohm max
- Input / Output Resistance
- Dielectric Strength : 1 Minutes for 1000 Volt rms
- Izalosyon Resistance : 500MegaOhm min.@ 500 Vdc
- DC Resistance : 0.1 Ohm max. @20C
-
APPLICATION - 10Base-T/100Base-Tx
- 100Base-T4/1000Base-Tx
- ATM-25/ATM-51/ATM-155
- 100VG-AnyLan
- TR-4/TR-16 Active/TR16 Passive
-
DIMENSIONS & PHYSICAL SPECIFICATIONS - High impact plastic housing, Flame retardant UL 94V-0
- (ABS+PC,UL 94V-0 )
- IDC Contact: 100 μ inch nickel plated over phosphor bronze
- IDC Operating Life: Minimum 250 Re-terminations
- Jack Contact: Phosphor bronze, 50μ inch gold plating over nickel plating in contact area
- Jack Operating Life: Minimum 750 insertions
- PCB: FR-4, 1.6mm thickness
- RJ Standard socket conforming to FCC part 68, maiting durability 750 cycles,Could be used in any unloaded keystone wallplate or patch panel;
- Available in Cat6, T568A & T568B wiring. Meeting every cabling requires.
- Plastic Housing: PC UL94V-0
- Contact Material: Phosphor Bronze Selective Gold Plating Over Nickel In
- Contact Area Connector
- Terminals: Phosphor Bronze and the TinPlated,User for 22-26 AWG
- Standard And Solid Wire, durability 200 cycles;
- Including the info 100 micron nickel over copper and
- 50u gold plating. Supports T568A and TS568B
- Supports standarts ANSI/EIA/TIA, 568B2-1,
- Storage Temp. : -40+85⁰C
- Operating Temp. : -20+60⁰C
- EMC tested and passed have EN-5502,Class B (Europe); FCC Part 15,
- Subpart J, Class A (USA) Certificed
- IDC contact material phosphor bronze with tin plating over nickle:
- IDC Housing:
- 1.Dual IDC: 110 & LSA
- 2. PC UL94V-0
-
IDC Cap : ABS
