FEATURES
-
RJ45 8P 8C 50μ inch Gold Plated Jack
-
Fitting 1U 24 Port High Density
-
Offers total solution of your local area networking
-
Dual IDC connector can accept 23-26 AWG solid and stranded cables
-
Support T568 A&B wiring & easy installation
-
RoHS compliant
-
Performance conforms to ANSI / TIA / EIA-568-C.2, ISO/IE 11801 and
-
EN50173-1 Category 6 specification
-
ELECTRICAL SPECIFICATIONS
-
Dielectric Strength : 1000V RMS for 1min
-
Insulation Resistance : 10 MΩ min
-
Contact Resistance : 2 mΩ per contact
-
Temperature Range : -20⁰C to 60⁰C max
-
Humidity : 10%-65%
-
Contact Resistance : 20m Ohm max
-
Imbalance Input : 200m Ohm max
-
Input / Output Resistance
-
Dielectric Strength : 1 Minutes for 1000 Volt rms
-
Izalosyon Resistance : 500MegaOhm min.@ 500 Vdc
-
DC Resistance : 0.1 Ohm max. @20C
APPLICATION
-
10Base-T/100Base-Tx
-
100Base-T4/1000Base-Tx
-
ATM-25/ATM-51/ATM-155
-
100VG-AnyLan
-
TR-4/TR-16 Active/TR16 Passive
DIMENSIONS & PHYSICAL SPECIFICATIONS
-
High impact plastic housing, Flame retardant UL 94V-0
-
(ABS+PC,UL 94V-0 )
-
IDC Contact: 100 μ inch nickel plated over phosphor bronze
-
IDC Operating Life: Minimum 250 Re-terminations
-
Jack Contact: Phosphor bronze, 50μ inch gold plating over nickel plating in contact area
-
Jack Operating Life: Minimum 750 insertions
-
PCB: FR-4, 1.6mm thickness
-

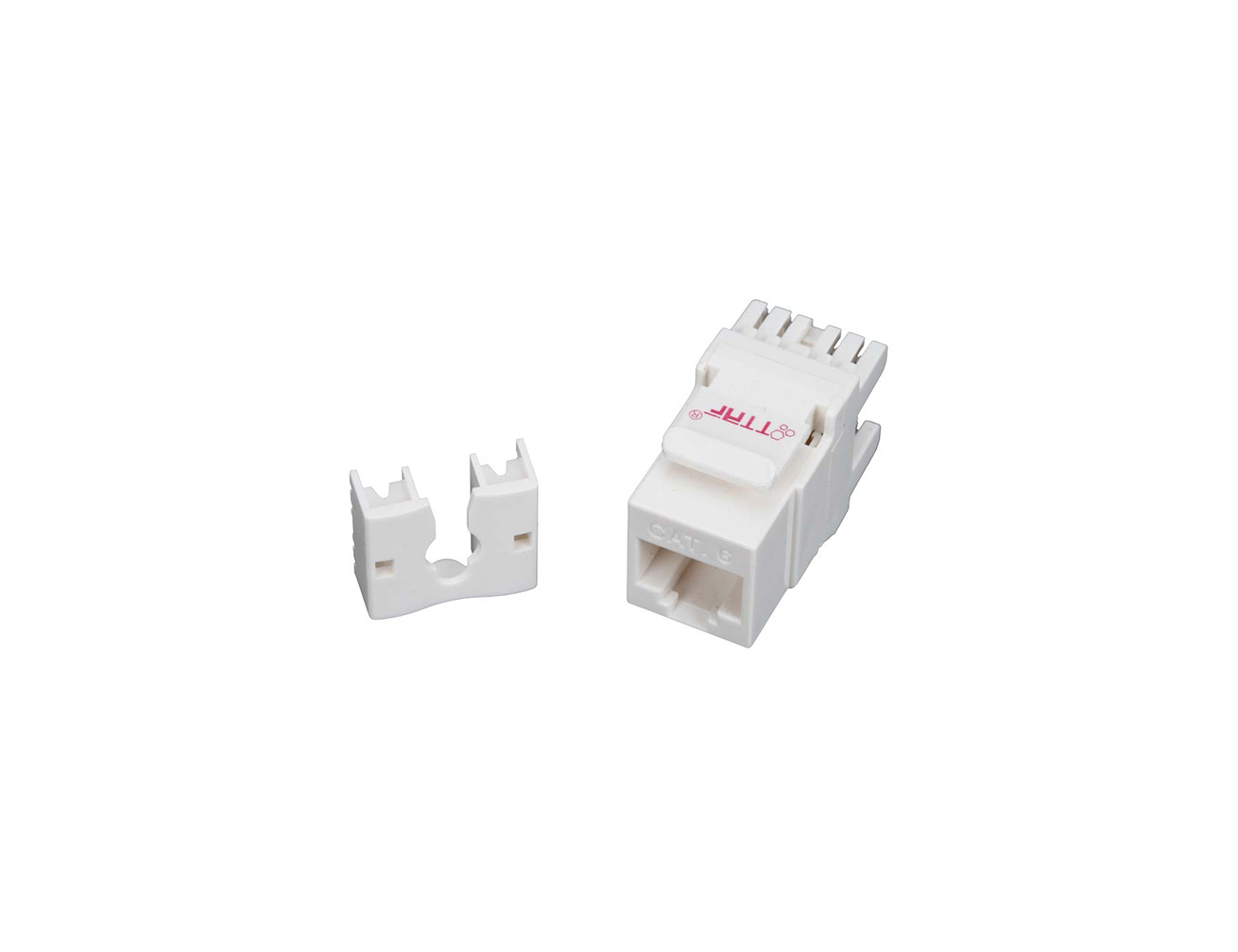

RJ Standard socket conforming to FCC part 68, maiting durability 750 cycles,Could be used in any unloaded keystone wallplate or patch panel;
-
Available in Cat6, T568A & T568B wiring. Meeting every cabling requires.
-
Plastic Housing: PC UL94V-0
-
Contact Material: Phosphor Bronze Selective Gold Plating Over Nickel In
-
Contact Area Connector
-
Terminals: Phosphor Bronze and the TinPlated,User for 22-26 AWG
-
Standard And Solid Wire, durability 200 cycles;
-
Including the info 100 micron nickel over copper and
-
50u gold plating. Supports T568A and TS568B
-
Supports standarts ANSI/EIA/TIA, 568B2-1,
-
Storage Temp. : -40+85⁰C
-
Operating Temp. : -20+60⁰C
-
EMC tested and passed have EN-5502,Class B (Europe); FCC Part 15,
-
Subpart J, Class A (USA) Certificed
-
IDC contact material phosphor bronze with tin plating over nickle:
-
IDC Housing:
-
1.Dual IDC: 110 & LSA
-
2. PC UL94V-0
-
IDC Cap : ABS
