Specifications
-
Strip cables from 4.5-25mm(18”-10”) diameter
-
Strip coaxial jacket and inner conductor in one operation,easy and effective
Overview:
-

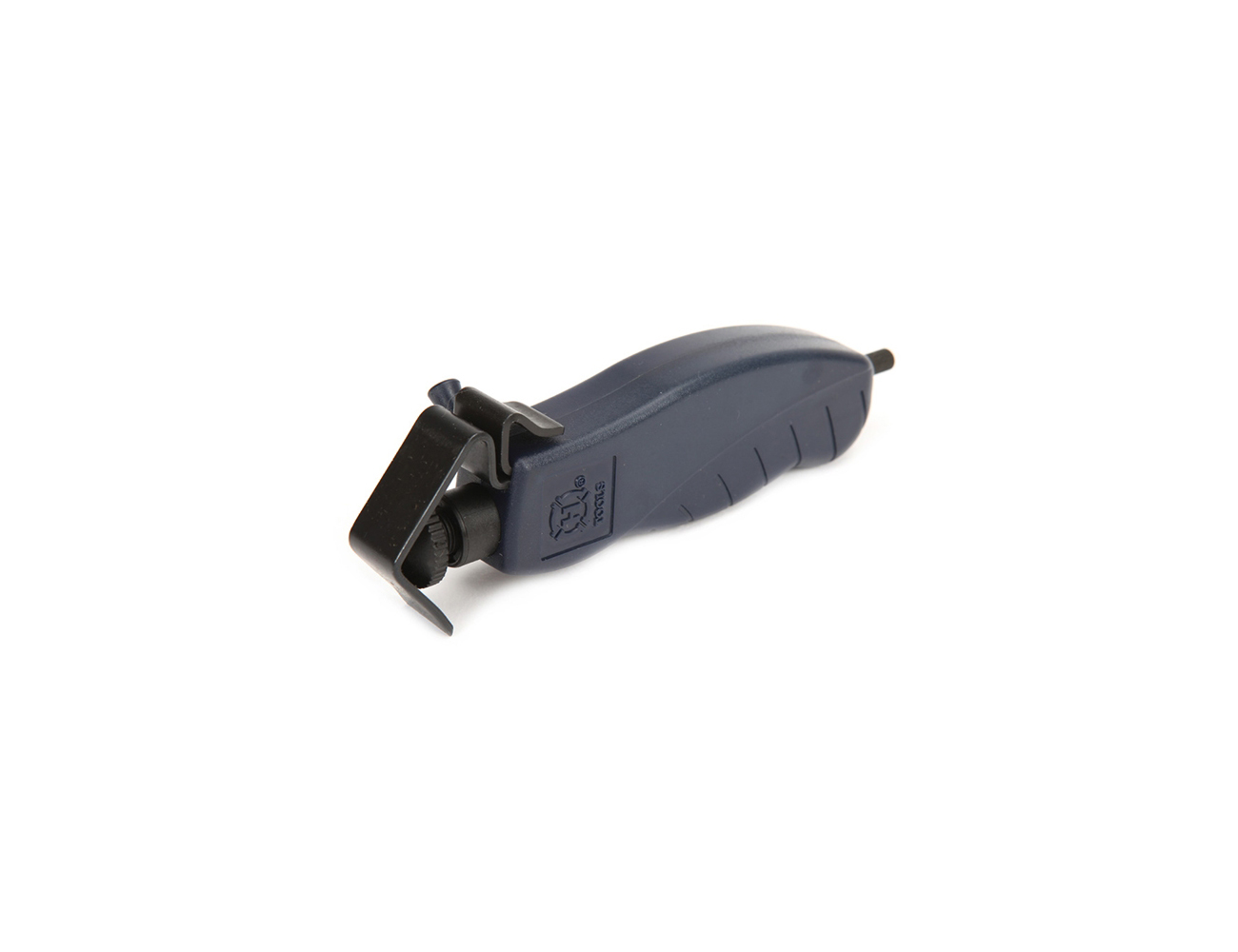

TL-325 6’’( 150mm) Plastic, Strip cables from 4.5-25mm(18”-10”) diameter, it can stripping the coaxial jacket and inner conductor in one operation by rotating the stripper in clockwise direction 2-3 times, easy and effective.
Operation
-
Turn the adjusting V-shape cutter nut out to get right exposed length of blade, which meet the cable thickness.
-
Turn the adjusting screws to get a varieth distant of “V” shape cable holder (The diameter of cable was indicated on the slitter guide) or puch to get a correct distant, and then insert cable into the cable holder. User can use less force on operation.
-
Rotate the tool by clockwise direction 2-3 times.
-
Push the shaft to the left end to get a longitudinal cuts. Pull the cable out or use the V-shape cutter to remove the slit insulation.
