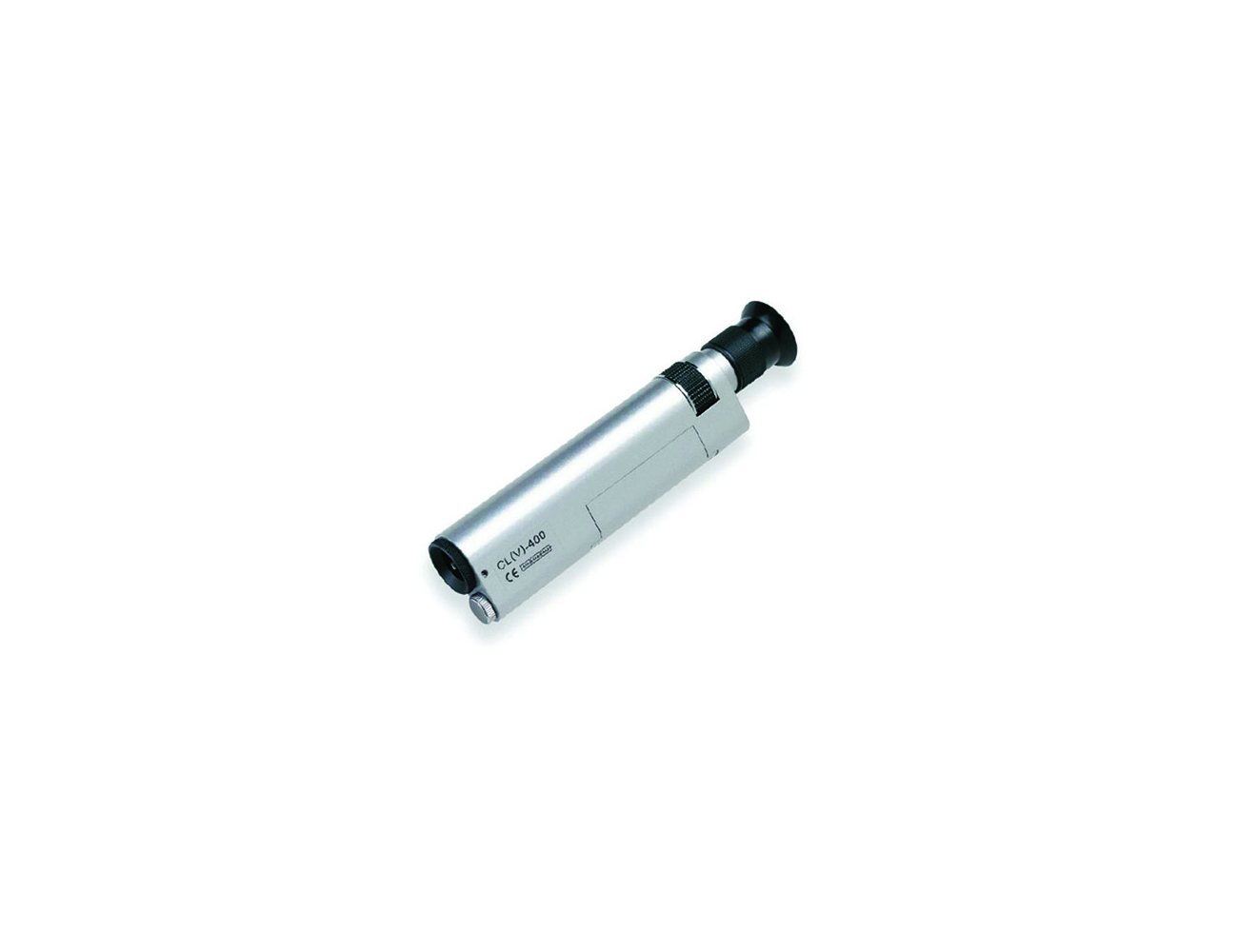

Fiber Optic Microscope
Available in magnification strengths of either 200x or 400x
-
Achromatic glass objective for excellent image quality
-
Focus wheel for proper focus at all times
-
Universal 2.5mm adapter for nearly all ST, SC and FC connector ferrules included as standard, optional LC, SC/APC, E2000/APC and SMA adapters available
-
Integrated laser safety filters (not intended for viewing lit fibers)
-
Coaxial Illumination by LED light giving up to 100,000 lamp hour life and extended battery life
-
Side illumination port allows back lit inspection of jumpers and can be used as a fault finder
-
Body of durable aluminum comes in soft padded storage case
-
Takes 3 AAA batteries (included)
-
Universal 2.5mm Adapter: PTTAF Code.: 80768
-
LC Adapter: PTTAF Code.: 80765
-
SC/APC 2.5mm (8º) Adapter: PTTAF Code.: 80766
-
E2000/APC 1.25mm Adapter: PTTAF Code.: 80764
-
SMA Adapter: PTTAF Code.: 80767
-
Length: 9 in (230 mm)
-
Weight: 1.2 lbs (550 g) without case
-
200x PTTAF Code.: 80760
-
400x PTTAF Code.: 80761
